Sliding airtight door – SP450

The SP450 airtight door guarantees enhanced airtightness in surgical suites and other hyper-sensitive areas. It acts as an airtight barrier and is therefore an effective way to combat the risk of bacteriological or particulate contamination. It is used in surgical suites, clean rooms, laboratories and other controlled environments.

An airtight door for operating theatres and clean rooms

The performances of SP450 airtight doors have been tested by COFRAC-certified test laboratories, which have issued airtightness certificates.

ADVANTAGES of the SP450 sliding airtight door

  • Very high airtightness performance
  • Easy to clean: porthole/vision panels flush on both sides, , no visible fastening screws, rounded shapes
  • High quality materials and perfect finish
  • Materials resistant to decontamination products.
  • Large choice of laminate finishes
  • Also available in an X-ray   version – SP450X or in a soundproofed version – SP450 STILLROOM®



Surgical suite/Hospital

Laboratory

Airtight

Resistant to cleaning products

Hygiene

Custom manufacturing

Technical specifications of SP450 sliding airtight doors

Door frame

  • Casing and inner casing made of aluminium with 15µ natural anodised or powder-coated finish or grade 304L or 316L stainless steel (welded stainless steel casings and inner casings),
  • Door frames with no visible fastening screws for optimum hygiene and cleaning.



Door leaf

  • Door panel made of high pressure laminate (HPL) with an antibacterial surface, pre-coated steel sheet (25µ or 55µ PET), powder-coated aluminium sheet, Acrovyn or stainless steel,
  • Reinforced by an aluminium or brushed stainless steel frame with rounded edges,
  • Replaceable silicone perimeter seals.

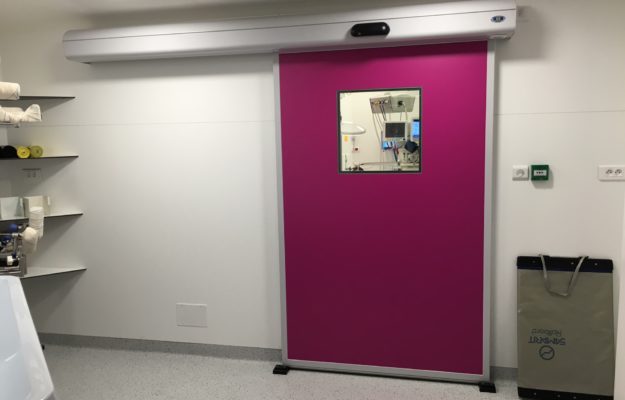

white airtight sliding door in hospital

Track

  • Anodised aluminium with polyamide runners and floor guides.

Pelmet

  • Protective cover made of anodised or coated aluminium, or of coated or grade 304L or 316L stainless steel
  •  Pivoting, sloped pelmet for easier cleaning.

Special door frames or pelmets can also be studied and offered as options, especially for your renovation needs.

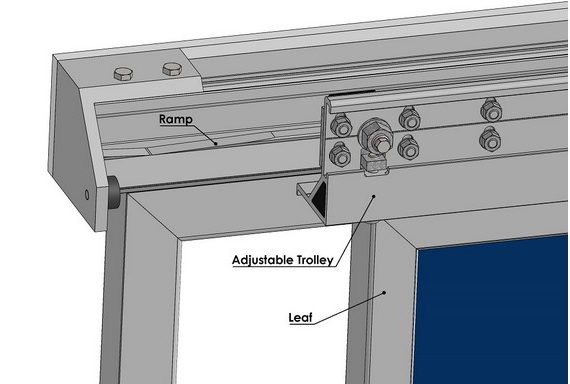

rail diagram of sliding airtight door

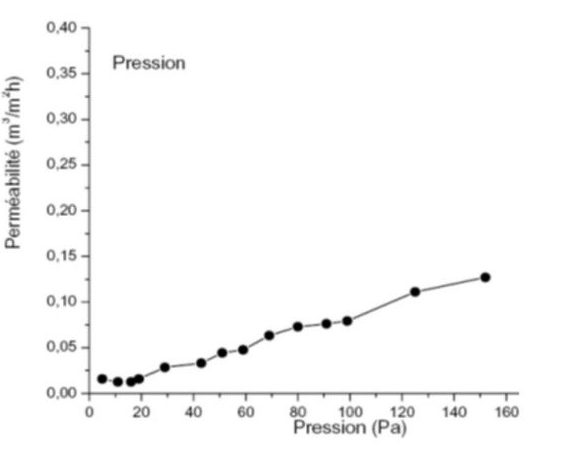

Technical performances

Airtightness of single-leaf SP450

  • Leakage < 0.02 m3/h per m2 at 20 Pa
  • Leakage < 0.04 m3/h per m2 at 50 Pa



Options

  • Compact laminate or fully glazed door leaf,
  • Porthole/vision panel flush on both sides in plain, sandblasted or screen-printed laminated glass,
  • Venetian blinds with button slat tilting system
  • Pull handles made of stainless steel or fibre-reinforced polyamide,
  • Stainless steel flush pull handle,
  • Stainless steel release handle for heavy manual airtight doors,
  • Acrovyn or brushed stainless steel kick plates,
  • Adjustable air transfer grille.
  • Automatic kit.



watertight sliding door with window and blind

Variants and adaptations of the sliding airtight door

  • X-ray version with lead lined leaf, door casing and porthole – SP440X
  • Soundproofed version with sound attenuation of up to -40dBSP450 STILLROOM ®



X-ray

Sound attenuation -40dB

More detailed documentation including drawings, BIM files, etc. can be  downloaded here

Examples of uses of sliding airtight doors:

  • Sliding airtight doors as access doors to surgical suites,
  • Sliding airtight doors in a pharmaceutical research laboratory,
  • Airtight X-ray doors in operating theatres equipped with medical imaging equipment,
  • Controlled air leakage rate doors in recovery rooms,
  • Hermetically sealed sliding doors in clean rooms in the aerospace, chemical, electronics and nuclear industries.

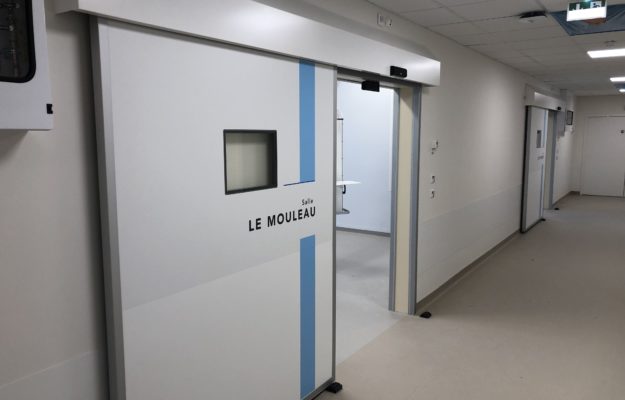

double sliding door SP450 in hospital
